MOD. 1100 | PN 16 | DN 50-300
Both ends with sockets for PE/PVC pipes, fully restraint

 SARACINESCHE con sistema racigroup per tubi pe pvc 1

SARACINESCHE con sistema racigroup per tubi pe pvc 2

SARACINESCHE con sistema racigroup per tubi pe pvc 3


  • Special gate valve to connect directly PE/PVC pipes, fully restraint by clamp ring with special interlocking teeth separated from the sailing system. simply removing the clamp ring the model 1300 with sockets for PVC is obtained.
  • Perfect tightness on plastic pipe by back seal hydraulically operating and indipendent from mechanical clamping of pipe. special gasket KtW, W270 and eN 681-1 Wa approved.
  • Manufactured according to the requirements of EN 1074 and EN 1171 (min. torque strength Class2).
  • Body and bonnet high quality ePOXY powder coated  (fusion bonded), coating thickness DFt min. 250 micron, zero porosity (tested with 3000v), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476.
  • Multiple O-Ring spindle sealing system embedded in non-corrosive material to DIN 3547-1 and additional back lip-seal for double security.
  • O-Rings changeable under pressure to IsO 7259.
  • Non-rising stainless steel spindle (single forged round bar with rolled threading).
  • Wedge inside and outside fully rubber vulcanised, with drain hole and special guiding rails to minimize friction.
  • Solid flexible wedge nut from corrosion free material.
  • Gliding disc on the spindle neck to reduce friction when operating the spindle. From DN 250 and bigger with additional axial roller bearing.
  • Bolts protected against corrosion by special resin.
  • Protection ring between body and bonnet to reduce risk of damages on the coating due to mechanical impacts during transport, handling and installation.
  • Clamp ring with special interlocking teeth.
  • Markings following EN 19.
  • Manual operation by handwheel, operating cap, extension spindle (underground installation).


Body and bonnet:
Ductile iron eN-gJs-400-15/eN 1563 (former to DIN ggg40)

stainless steel 1.4021/eN IsO 10088 (equivalent to UNI X20Cr13 or aIsI 420)

Ductile iron eN-gJs-400-15/eN 1563 (former to DIN ggg40), ePDM rubber vulcanised, potable water approved

Wedge nut:
Brass CuZn40Pb2

O-ring bush:
Brass CuZn40Pb2

Gliding disc:

Back lip seal bonnet seal and dust cap:
ePDM rubber, potable water approved

Bonnet allen screws:
steel class 8.8 to eN IsO 898-1, corrosion protected by special seal

Protection ring:
Reinforced plastic material

Grip ring:
Brass CuZn40Pb2

Bolts and washers for compression ring:
stainless steel a2-70 eN IsO 3506

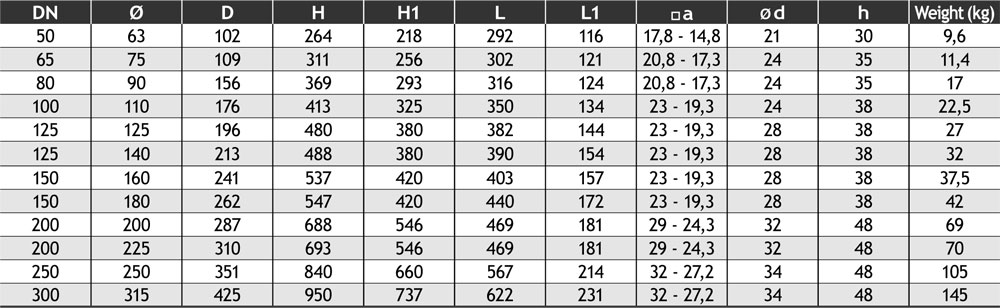

Gate valves racigrip socket ends pe pvc pipes 1
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
