bullet acquedottoFLANGE AND CONNECTORS UNIVERSAL FLANGE RACI-RANGE


MOD. 9200| PN 16 | DN  50-600|

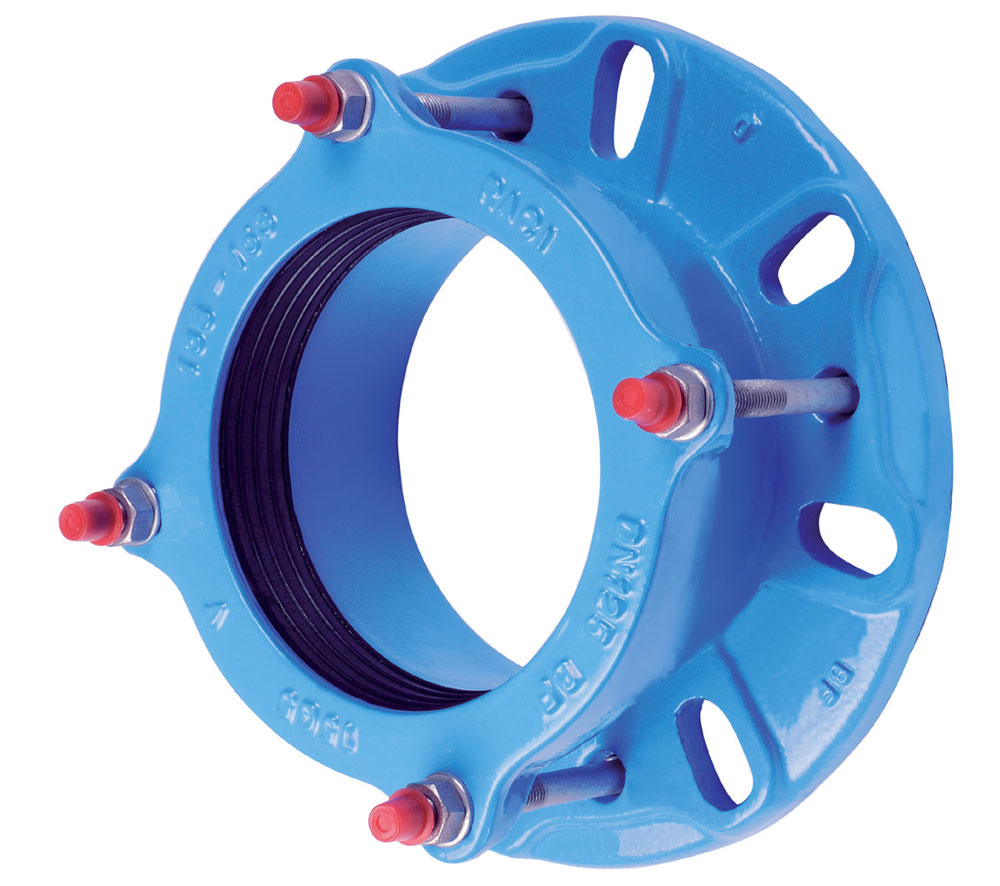

Universal flange adaptor.



flange e giunti flangia universale raci range 1





flange e giunti flangia universale raci range 2



SPECIAL FEATURES:

  • Universal flange adaptor with medium range for metal, AC and PVC pipes, non-restraint.
  • Body and compression ring high quality ePOXY powder coated (fusion bonded), coating thickness (DFt min. 250 microns), zero porosity (tested with 3000v), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476.
  • Hydraulic sealing obtained by compression of gasket between pipe and special seat on body.
  • Bolts/nuts/washers from steel, high quality corrosion protected.
  • Universal fl ange drilling according to eN 1092-2 PN 10 and PN 16.
  • The product is not restraint, anchoring of the pipe is suggested.



MATERIALS:

Body and compression ring:
Ductile iron EN-GJS-400-15 / EN 1563 (former to DIN GGG40)

Gasket:
Rubber, potable water approved

Bolts/nuts/washers:
Steel class 8.8, coated against corrosion





flange e giunti flangia universale raci range 3

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
