bullet acquedottoFLANGE AND CONNECTORS RESTRAINT FLANGE ADAPTOR RACI-GRIP


MOD. 9100| PN 10/16 | DN  50-300|

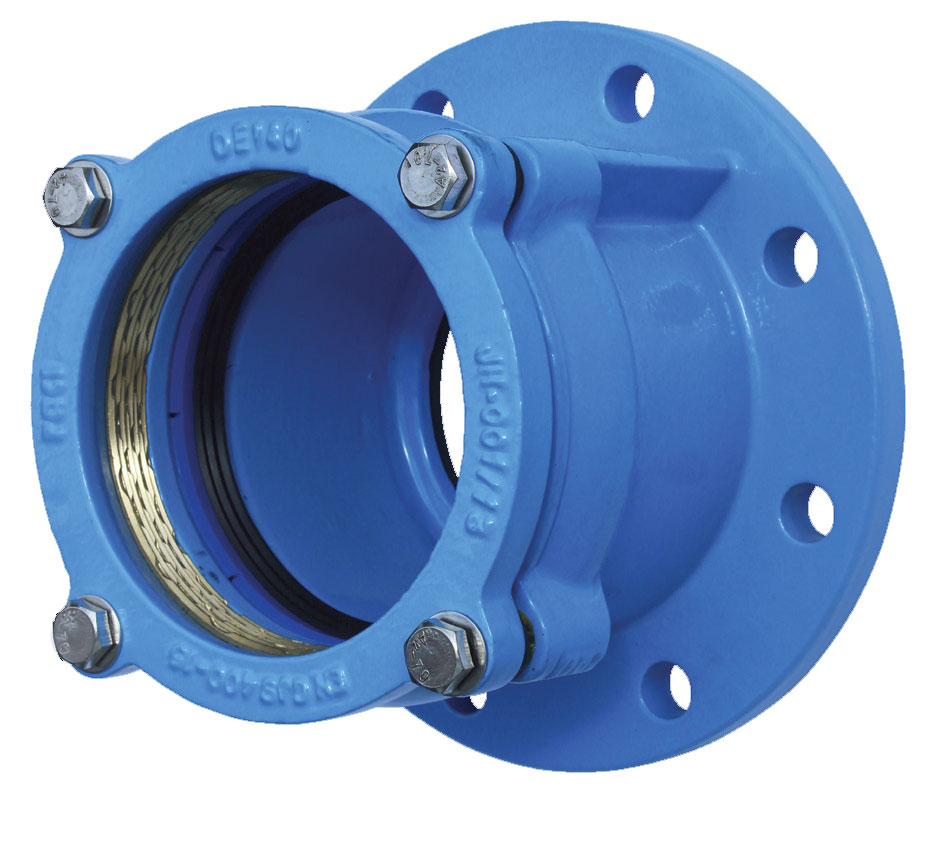

Flange for PE/PVC pipes, fully restraint. flange e giunti flangia antisfilamento raci grip 1

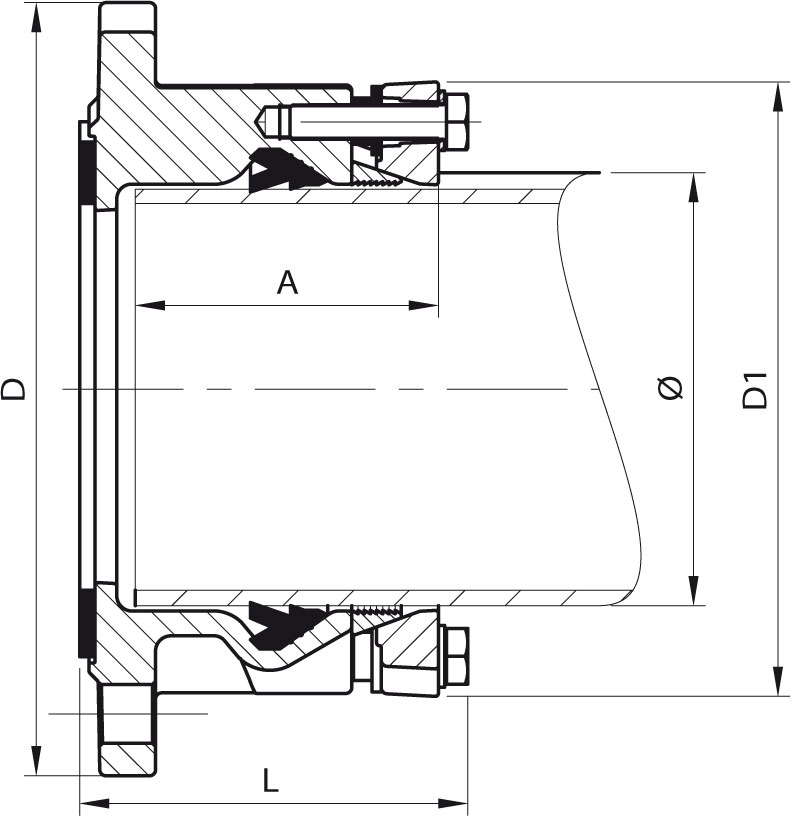

flange e giunti flangia antisfilamento raci grip 2









SPECIAL FEATURES:

  • Body and compression ring high quality epoxy powder coated (fusion bonded), coating thickness DFt min. 250 microns, zero porosity (tested with 3000v), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476.
  • Perfect tightness by back seal hydraulically operating and independent from mechanical clamping of pipe.
  • Special gasket KtW, W270 and eN 681-1 Wa approved.
  • New body design with socket according to eN 1452-2.
  • Flat rubber gasket sticked on fl ange surface to make more easy assembly and simple dismounting.
  • Flange drilling according UNI eN 1092-2 PN 10 and PN 16.
  • Rubber spacer bushes on every bolt of compression ring to clamp the joint



MATERIALS:

Body and compression ring:
Ductile iron eN-gJs-400-15 / eN 1563 (former to DIN ggg40)

Gasket:
Rubber, potable water approved

Grip ring:
Brass CuZn40Pb2

Bolts and washers for compression ring:
stainless steel a2-70 eN IsO 3506

Rubber spacer bushes:
Reinforced rubber

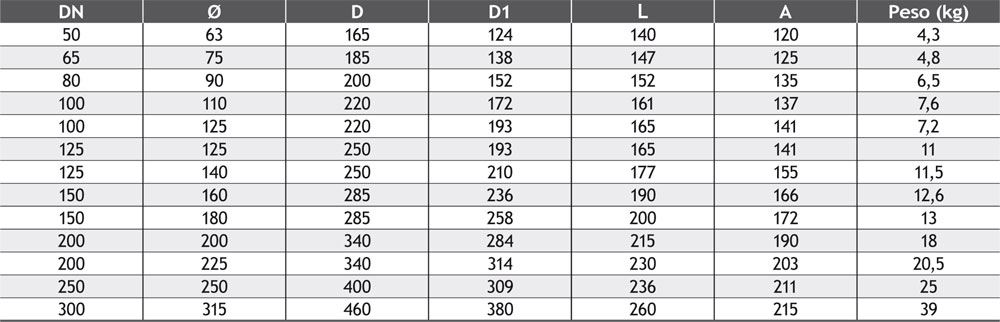

flage e giunti flangia antisfilamento raci grip 3

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree n° 174, dated 6/4/2004.
