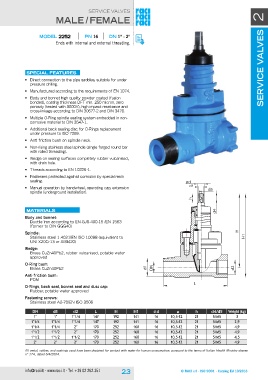

SERVICE VALVES SERVICE VALVES 2

male / female

MODEL 2252 PN 16 DN 1“ - 2“

Ends with internal and external threading.

special features øda
d5
• Direct connection to the pipe saddles, suitable for under
pressure drilling.

• Manufactured according to the requirements of EN 1074.

• Body and bonnet high quality powder coated (fusion
bonded), coating thickness DFT min. 250 micron, zero
porosity (tested with 3000V), high impact resistance and
cross-linkage according to DIN 30677-2 and DIN 3476.

• Multiple O-Ring spindle sealing system embedded in non-
corrosive material to DIN 3547-1.

• Additional back sealing disc for O-Rings replacement
under pressure to ISO 7259.

• Anti friction bush on spindle neck.

• Non-rising stainless steel spindle (single forged round bar
with rolled threading).

• Wedge on sealing surfaces completely rubber vulcanised,
with drain hole.

• Threads according to EN 10226 -1.

• Fasteners protected against corrosion by special resin
sealing.

• Manual operation by handwheel, operating cap, extension
spindle (underground installation).

Materials h
d4
Body and bonnet: H
Ductile iron according to EN-GJS-400-15 /EN 1563 H1
(former to DIN GGG40)
d1 d2
Spindle: DN
Stainless steel 1.4021/EN ISO 10088 (equivalent to
UNI X20Cr13 or AISI420) L

Wedge:
Brass CuZn40Pb2, rubber vulcanised, potable water
approved

O-Ring bush:
Brass CuZn40Pb2

Anti-friction bush:
POM

O-Rings, back seal, bonnet seal and dust cap:
Rubber, potable water approved

Fastening screws:
Stainless steel A2-70/EN ISO 3506

DN d1 d2 L H H1 Ø d a h d4/d5 Weight (kg)

1" 1" 1"1/4 147 192 141 16 10,5-12 21 5/M5 3

1"1/4 1"1/4 1"1/4 147 192 141 16 10,5-12 21 5/M5 2,9

1"1/4 1"1/4 2" 170 252 160 16 10,5-12 21 5/M5 4,9

1"1/2 1"1/2 2" 170 252 160 16 10,5-12 21 5/M5 4,9

1"1/2 1"1/2 1"1/2 170 252 160 16 10,5-12 21 5/M5 4,5

2" 2" 2" 170 252 160 16 10,5-12 21 5/M5 4,9

All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry decree
n° 174, dated 6/4/2004.
