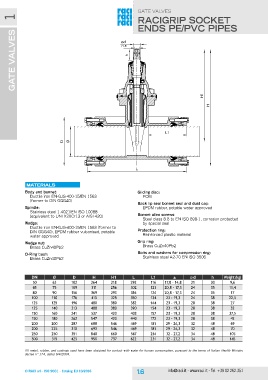

gate valves 1 gate valves
racigrip sOcKet
ends pe/pvc pipes
ød
a
h
H1
H
L1
D
Ø
Materials L
Body and bonnet: gliding disc:
Ductile iron eN-gJs-400-15/eN 1563 POM
(former to DIN ggg40)
Back lip seal bonnet seal and dust cap:
spindle: ePDM rubber, potable water approved
stainless steel 1.4021/eN IsO 10088
(equivalent to UNI X20Cr13 or aIsI 420) Bonnet allen screws:
steel class 8.8 to eN IsO 898-1, corrosion protected
Wedge: by special seal
Ductile iron eN-gJs-400-15/eN 1563 (former to
DIN ggg40), ePDM rubber vulcanised, potable protection ring:
water approved Reinforced plastic material
Wedge nut: grip ring:
Brass CuZn40Pb2 Brass CuZn40Pb2
O-ring bush: Bolts and washers for compression ring:
Brass CuZn40Pb2 stainless steel a2-70 eN IsO 3506
DN Ø D H H1 L L1 a Ø d h Weight (kg)
30 9,6
50 63 102 264 218 292 116 17,8 - 14,8 21 35 11,4
35 17
65 75 109 311 256 302 121 20,8 - 17,3 24 38 22,5
38 27
80 90 156 369 293 316 124 20,8 - 17,3 24
38 32
100 110 176 413 325 350 134 23 - 19,3 24
38 37,5
125 125 196 480 380 382 144 23 - 19,3 28 38 42
48 69
125 140 213 488 380 390 154 23 - 19,3 28 48 70
48 105
150 160 241 537 420 403 157 23 - 19,3 28 48 145
150 180 262 547 420 440 172 23 - 19,3 28
200 200 287 688 546 469 181 29 - 24,3 32
200 225 310 693 546 469 181 29 - 24,3 32
250 250 351 840 660 567 214 32 - 27,2 34
300 315 425 950 737 622 231 32 - 27,2 34
All metal, rubber, and coatings used have been designed for contact with water for human consumption, pursuant to the terms of Italian Health Ministry
decree n° 174, dated 6/4/2004.
